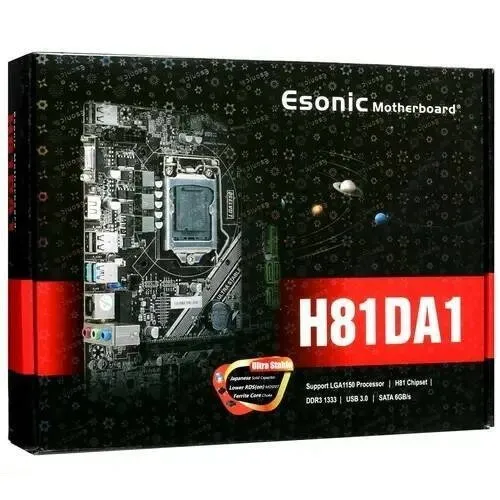

Esonic H81DA1 4th Gen M-ATX Motherboard
Esonic H81DA1 Full Specification
| Item | Motherboard |
|---|---|
| Model | ✅ H81DA1 |
| Brand | Esonic |
| Motherboard Type | Standard |
| Chipset | Intel H81 |
| Supported Processors | 4th Generation Core i7 / i5 / i3 / Pentium / Celeron Processor |
| Max Memory | 2 x DDR3 1066 / 1333MHz DIMM |
| Onboard Video | HDMI / VGA ports |
| Onboard Audio | Realtek Chip, ALC 6-channel audio |
| Onboard LAN | 1 x M.2 Nvne Socket, Supports 2242 SSD 4 x SATA 6Gb/s Ports |
Slot1 x PCIe x16 3.0/2.0 slot1 x PCIe x1 2.0 slot
Storage1 x M.2 Nvne Socket, Supports 2242 SSD4 x SATA 6Gb/s Ports
USB4 x USB 3.0 port (2 at back panel, blue, 2 at mid-board)6 x USB 2.0 port (4 at back panel, black, 2 at mid-board)
Back Panel I/O1 x VGA Port1 x HD Port1 x LAN (RJ45) Port2 x USB 3.0 Ports(Blue)4 x USB 2.0 Ports3 x flexible audio jacks
Internal I/O1 x USB 3.0 connector (19pin), supports 2 x USB 3.0 ports1 x USB 2.0 connector, supports 2 x USB 2.0 ports4 x SATA 6Gb/s Ports1 x 4-pin CPU FAN/SYS FAN connectors1 x 24-pin ATX power connector1 x 4-pin 12V ATX Power connectors1 x DEBUG connector1 x F Audio connector1 x Internal Speaker connector1 x F Panel connectorDimension: 215 x 170mmColor: Black
Esonic H81DA1 Description
Esonic H81DA1 M-ATX motherboard supports Core i7 / i5 / i3 processors. It includes Intel's H81 chipset which will be used for Intel's 4th Gen Core processors. This motherboard supports DDR3 RAM which is the common memory standard for desktop computers. It has 4 x SATA 3.0 6Gb/s storage and M.2 Nvne socket, PCIE-X16 3.0/2.0 slot, PCIE-X1 2.0 slot.
Storage1 x M.2 Nvne Socket, Supports 2242 SSD4 x SATA 6Gb/s Ports
USB4 x USB 3.0 port (2 at back panel, blue, 2 at mid-board)6 x USB 2.0 port (4 at back panel, black, 2 at mid-board)
Back Panel I/O1 x VGA Port1 x HD Port1 x LAN (RJ45) Port2 x USB 3.0 Ports(Blue)4 x USB 2.0 Ports3 x flexible audio jacks
Internal I/O1 x USB 3.0 connector (19pin), supports 2 x USB 3.0 ports1 x USB 2.0 connector, supports 2 x USB 2.0 ports4 x SATA 6Gb/s Ports1 x 4-pin CPU FAN/SYS FAN connectors1 x 24-pin ATX power connector1 x 4-pin 12V ATX Power connectors1 x DEBUG connector1 x F Audio connector1 x Internal Speaker connector1 x F Panel connectorDimension: 215 x 170mmColor: Black
Esonic H81DA1 Description
Esonic H81DA1 M-ATX motherboard supports Core i7 / i5 / i3 processors. It includes Intel's H81 chipset which will be used for Intel's 4th Gen Core processors. This motherboard supports DDR3 RAM which is the common memory standard for desktop computers. It has 4 x SATA 3.0 6Gb/s storage and M.2 Nvne socket, PCIE-X16 3.0/2.0 slot, PCIE-X1 2.0 slot.
